Hammer unions
Additional Information
- Three lug nuts and self-locking ACME threads provide quick make-up and break-out.
- Colour coded for quick identification, Unique identification for sour gas unions.
- Meet or exceed National Association of Corrosion Engineers standard NACE MR-01-75 and API RP-14E.
- Manufactured from quality steel meeting ASTM and/or AISI standards.
- All unions provide pressure-tight & positive sealing for low-pressure services (500 to 2,000 PSI).
- The spherical surface male sub and angular surface female sub form a metal-to-metal seal, the ball and tangent provide a perfect seal.
- Range from 1/2" to 12" with cold working pressures from 500 to 20,000 PSI.
- Fully interchangeable with most major brands of Hammer Unions.
Detailed Information
There are different Figure in Hammer Unions as per the Pressure Rating already described in reference table above.
If you need detail of every figure please click below tab
figure wise detail
FIGURE 100
FIGURE 200
FIGURE 206
FIGURE 207
FIGURE 400
FIGURE 602

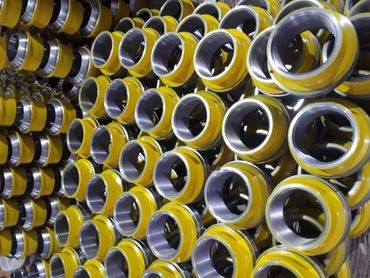

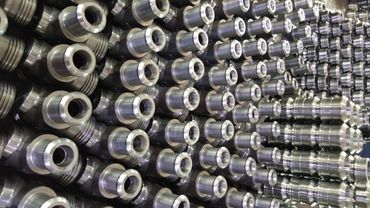

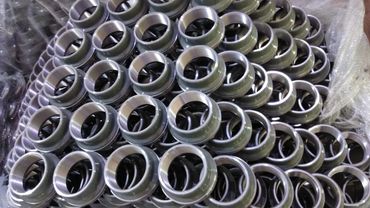

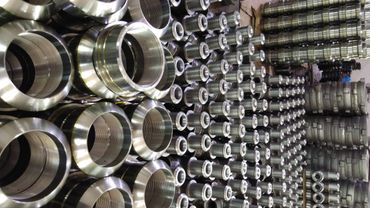

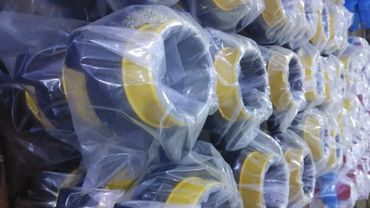

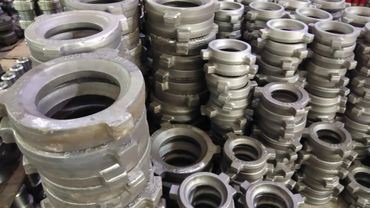

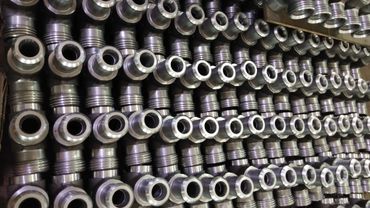

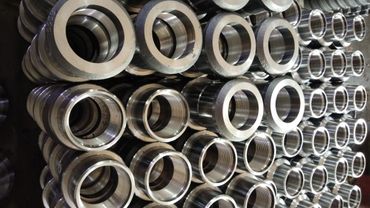

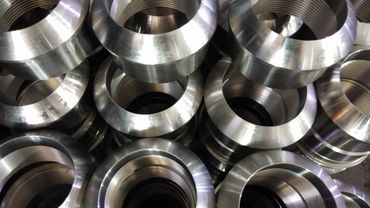

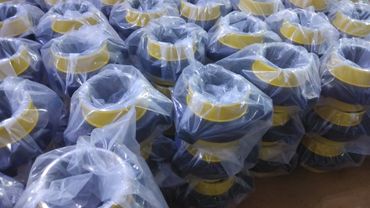

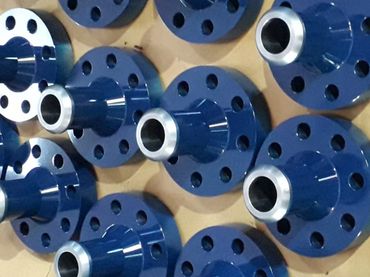

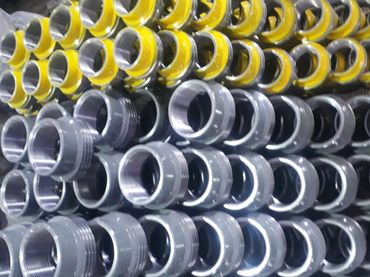

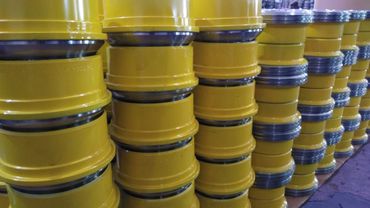

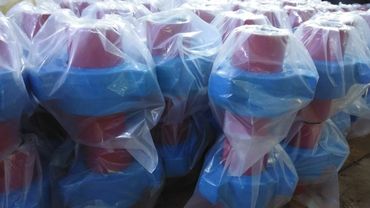

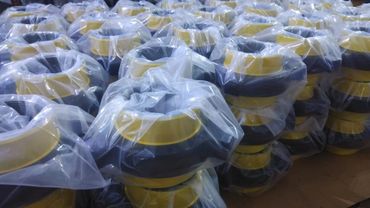

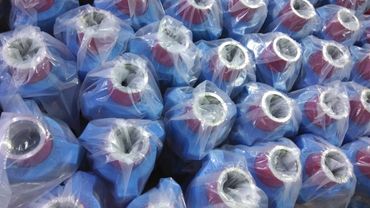

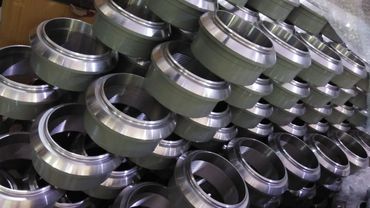

Photo Gallery
